Toyota - XYR

time-calendar.png 1999

Original name: トヨタ XYR

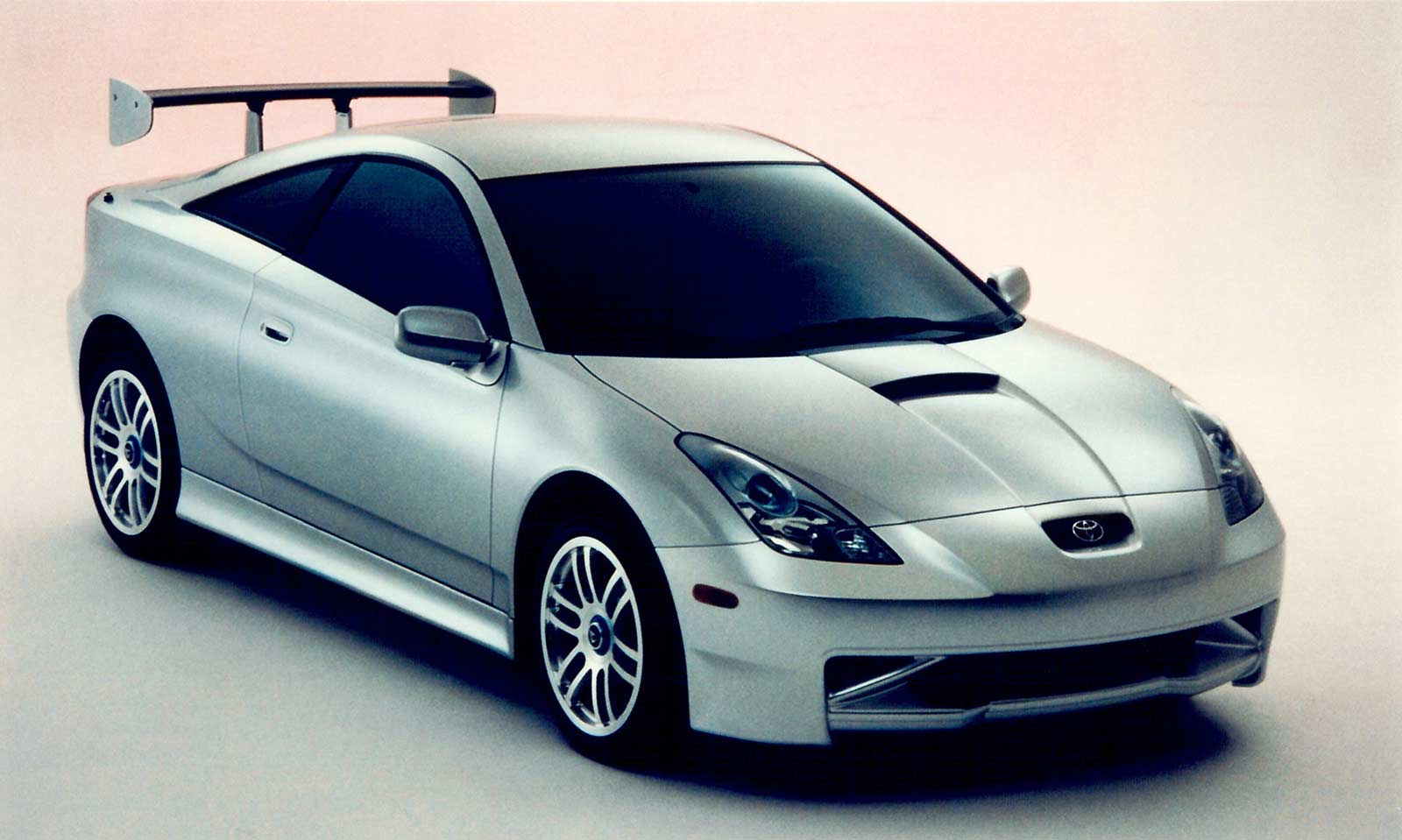

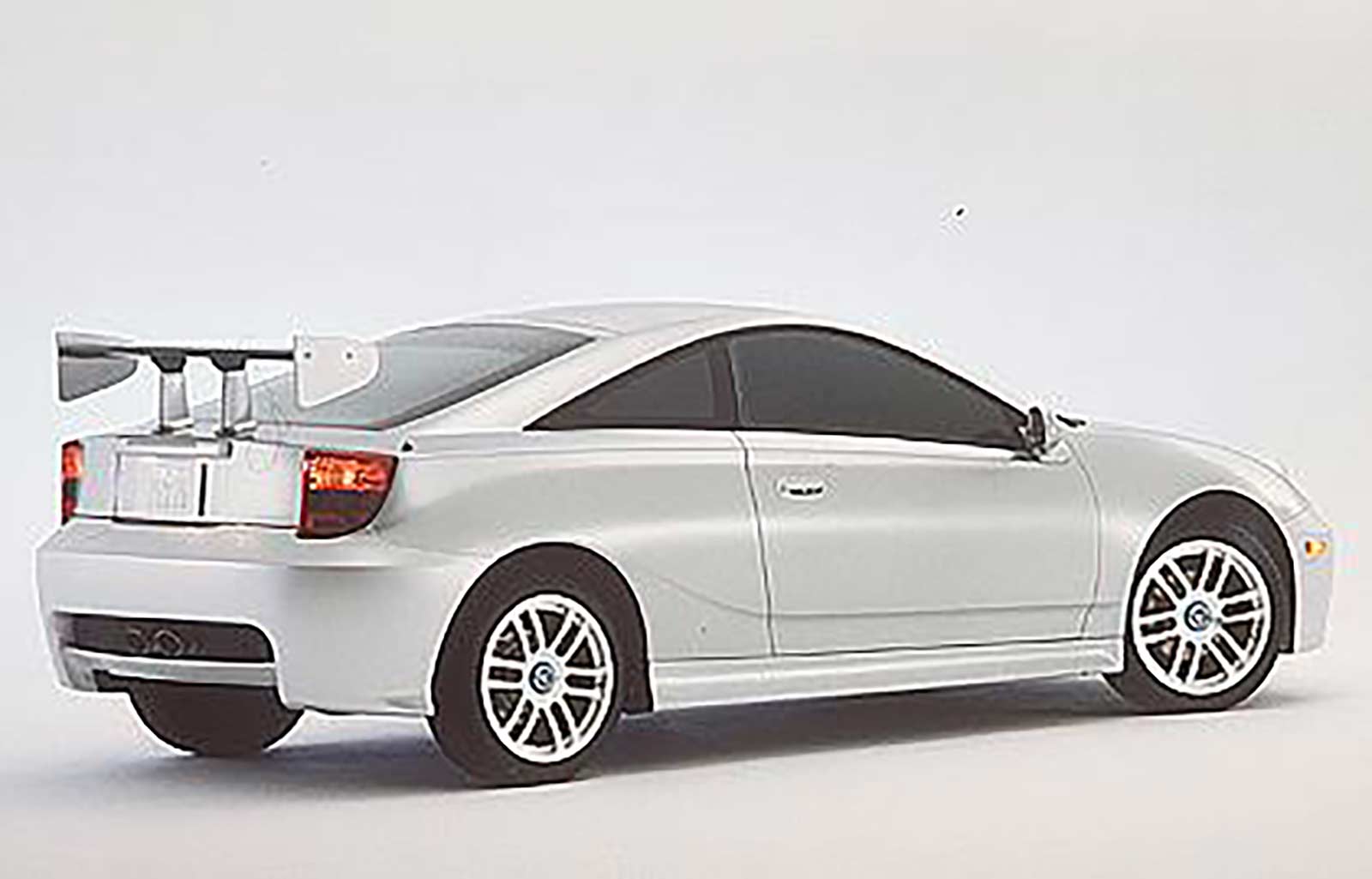

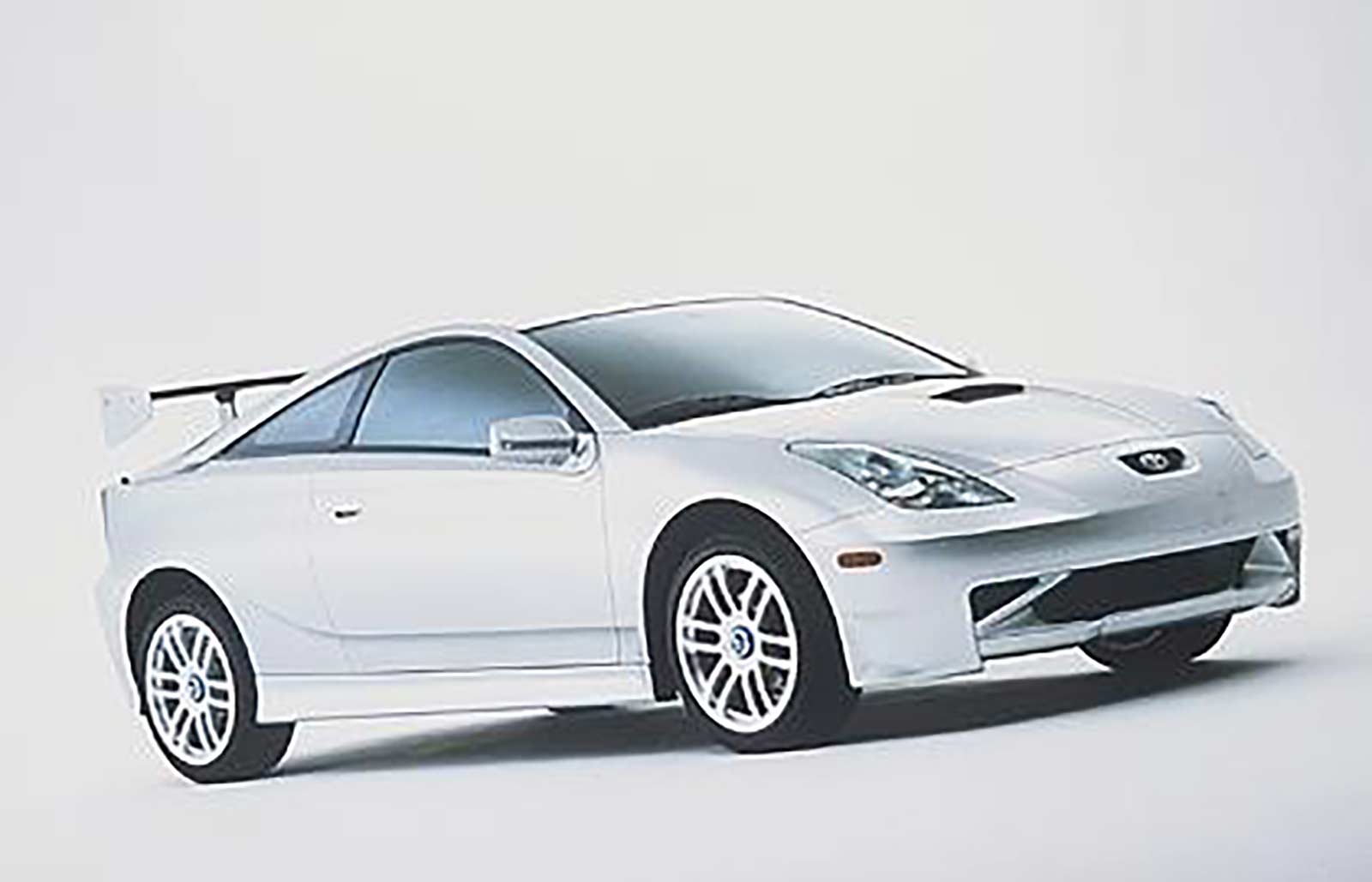

Toyota used the Detroit Motor Show to unveil the exciting XYR sports coupe, a lightweight high-performance concept vehicle styled by Toyota’s CALTY Design Centre in Newport Beach, California.

An all-new aluminium alloy 1.8-litre twin-cam engine powers the front-wheel drive XYR. The engine employs an all-new VVTL-i induction system to produce 180 horsepower at 7,600 rpm. The newly developed system combines continuously variable valve timing and continuously adjustable valve lift, depending on engine rpm. The system provides an exceptional blend of power, fuel economy and reduced emissions over a broad rpm range.

The aggressively styled XYR rides on a 2590mm wheelbase and weighs in at only 1,140 kg. Suspension is fully independent, featuring MacPherson struts up front and double wishbone suspension at the rear, with 17-inch wheels, low profile tyres and disc brakes all round.

The interior of the XYR was designed to convey the look, feel and simplicity-of-operation of a race car cockpit. Instrumentation is large and legible. Controls are simple and easy to operate, and the sports seats are heavily bolstered for good lateral support.

The XYR is one of two vehicles to be unveiled by Toyota at this year’s Detroit show that are aimed specifically at young new car buyers. The second is a unique-to-the-U.S.A. saloon version of the new Yaris hatchback to be called ‘ECHO’ in the States. Both offer a strong conceptual indication of future Toyota products aimed at establishing an impression and a lasting connection with younger drivers.

TOYOTA XYR CONCEPT SPECIFICATIONS



ENGINE

1.8-litre, 4-cylinder, twin-cam, 16-valve multi-point EFI, aluminium block with aluminium alloy head



Bore & Stroke

82.0 x 85.1 mm



Displacement

1795cc



Compression Ratio

11.5:1



Valve Train

Twin-Cam 16-valve VVTL-I



Horsepower (SAE)

180 hp at 7600 rpm



Fuel System

Multi-Point Electronic Fuel Injection



Drive System Type

Front-Wheel Drive



Transmission

4-Speed Automatic w/ E-Shift

SUSPENSION

Front: MacPherson Strut

Rear: Double Wishbone

BRAKES

Front: Ventilated Disc

Rear: Disc

STEERING

Power rack-and-pinion



TYRES AND WHEELS

Wheel Size

17×7.5-inch JJ



Tyre Size

215/45 ZR 17

DIMENSIONS

Wheelbase

102.4 in



Overall Length

170.6 in



Overall Width

68.4 in



Overall Height

51.4 in



Track (f/r)

58.7/58.3 in



Kerb Weight

1,140 kg



SOURCE: Toyota

Motorshows

Year Place
1999 Detroit

Types

Similar / related models
