Daihatsu - HSC

time-calendar.png 2007

Original name: ダイハツ HSC




Daihatsu proposes a next-generation small car concept that is gentle to the Earth and its people, for all those people who want to choose a car that is actively kind to the environment. The HSC, or Heart & Smile Mover, is a proposal for a new sedan style based on ease of use and safety design that utilizes practical technologies to achieve both excellent fuel consumption performance and space to seat four adults comfortably.

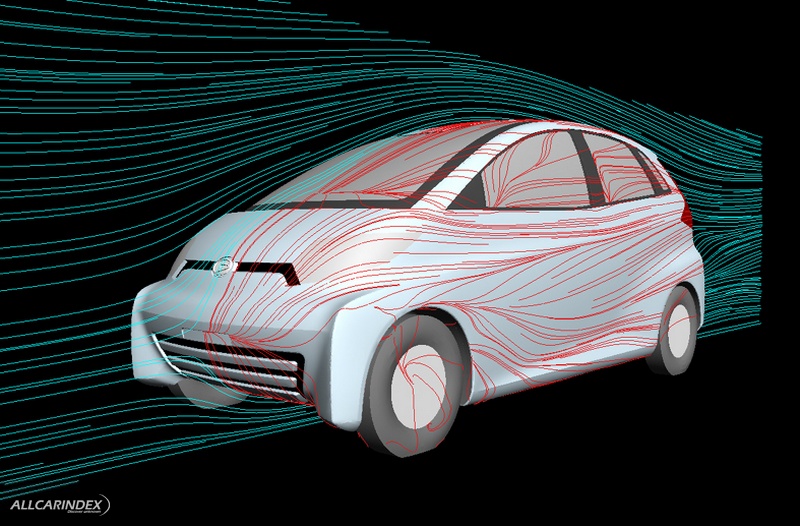

While maintaining space that accommodates four people in comfort, it achieves a low CD value of 0.28 that contributes to improved fuel consumption through a sleek design that makes use of a wing-shaped cabin cross-section and a catamaran-like underbody that extends past the wheels to reach all along the body. At the same time, engine heat is exhausted out of the front wheel disc, to ensure that a thorough aerodynamic control design is maintained.

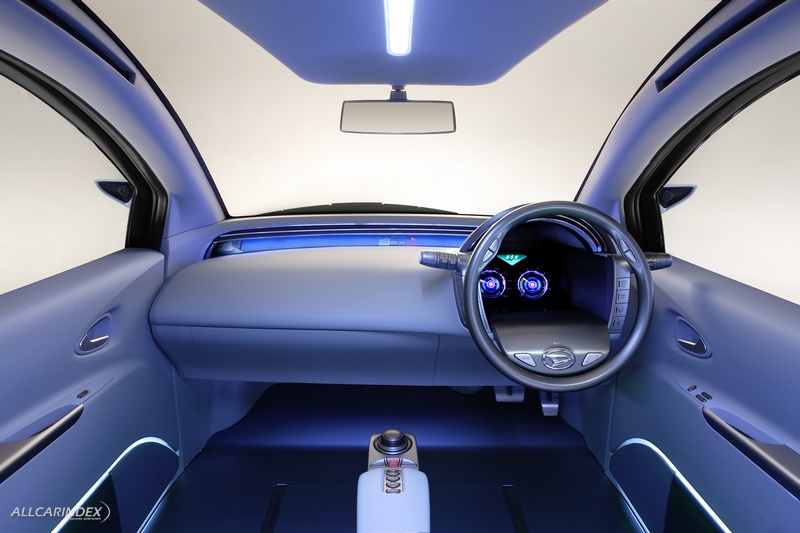

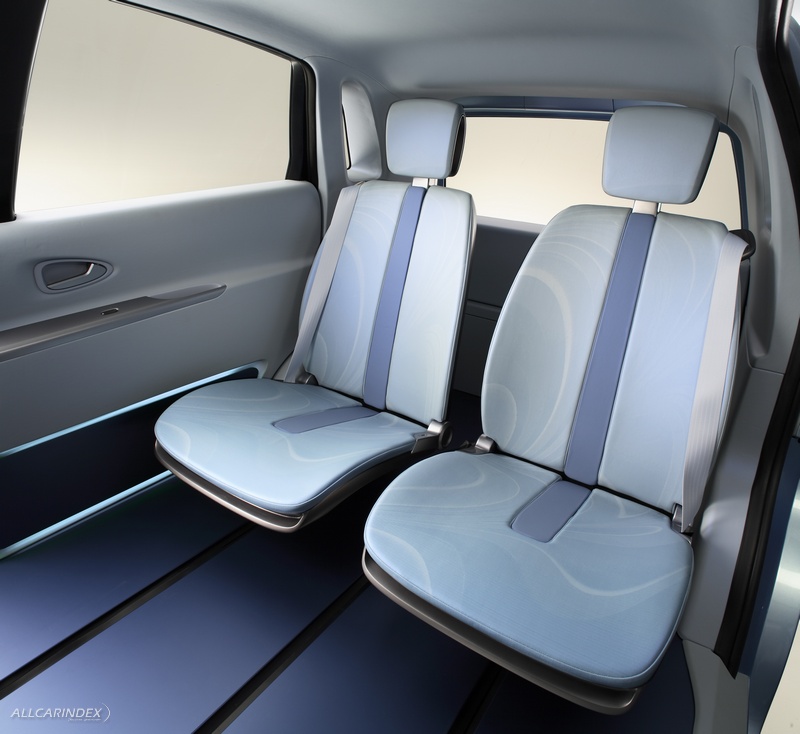

The car uses a flat floor and floating image long-slide seat. And with satellite switches, operating systems concentrated on a floor control tower, and a liquid crystal monitor meter, it offers all-new information displays.

<Characteristics>

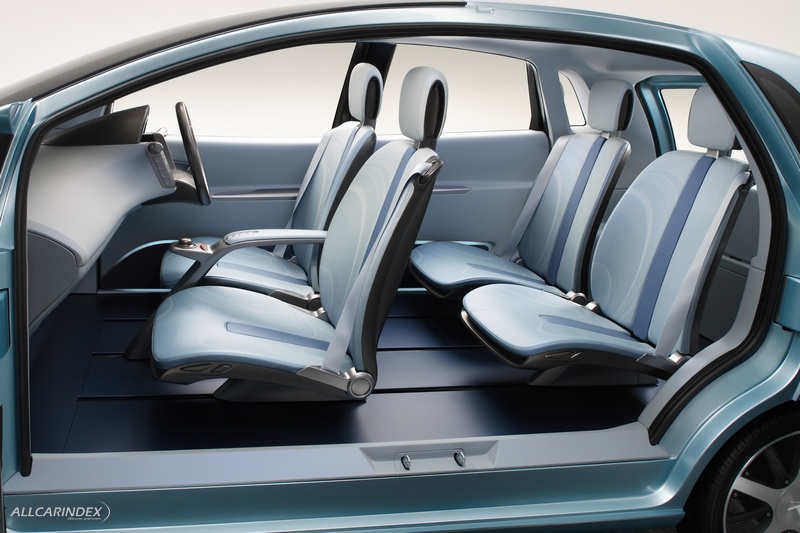

[EASE] Use of double doors through elimination of the B pillar, and of flat floors, for a space that is easy to get in and out of [ECO] 4.1L/100km fuel consumption is achieved through an efficient Power Unit combining factors including reduced friction, improved fuel combustibility and increased compression ratio together with CVT, Idle Stop System and aerodynamic control design with CD value of 0.28.

[SAFETY] Lightweight, safe frame, with side and back monitors plus 11-inch large monitor to reduce dead spots

[FREE] Offers comfortable habitability for 4 adults while also achieving advanced aerodynamic performance



Dimension and Weight

Overall Length

mm

3395

Overall Width

mm

1475

Overall Height

mm

1550

Wheel base

mm

2490

Track (front)
(Rear)

mm
mm

1300
1295

Minimum road
clearance

mm

160

Kerb Weight

kg

740

Seating Capacity

persons

4

Engine

Type



Petrol, 3-cylinder,
DOHC, 12-valve
transverse

Displacement

cc

658

Bore X Stroke

mm

63 X 70.4

Max. Output

kW

43/7200

Max. Torque

Nm

65/4000

Fuel Supply System

m

Electric Fuel Injection

Compression Ratio





Suspension

FR
RR



Strut Coupled
Beam

Steering





Rack & Pinion

Brakes

FR
RR



Disc
Leading Trailing

Tyre size





165/50R16

Fuel Consumption
(EU Combined mode)





4.1L/100km

CO2 Emissions
(EU Combined mode)





95g/km





SOURCE: Daihatsu



Motorshows

Year Place
2007 Frankfurt
2007 Tokyo
