Concept Car Of The Day: 1954 General Motors XP-21 Firebird

Aug 21, 2024

#Featured

In 1954, General Motors unveiled a groundbreaking automotive innovation: the XP-21 Firebird I, the first gas turbine automobile ever built and tested in the United States. This engineering marvel, designed by the legendary GM Styling Vice President Harley J. Earl, represented a bold experiment in futuristic transportation. It wasn't just a car—it was a symbol of the forward-thinking spirit that characterized GM's research during the mid-20th century. Firebird I was conceived as an engineering and styling exercise, created to explore whether gas turbine engines, typically found in aircraft, could be adapted for road vehicles.

Aircraft-Inspired Design

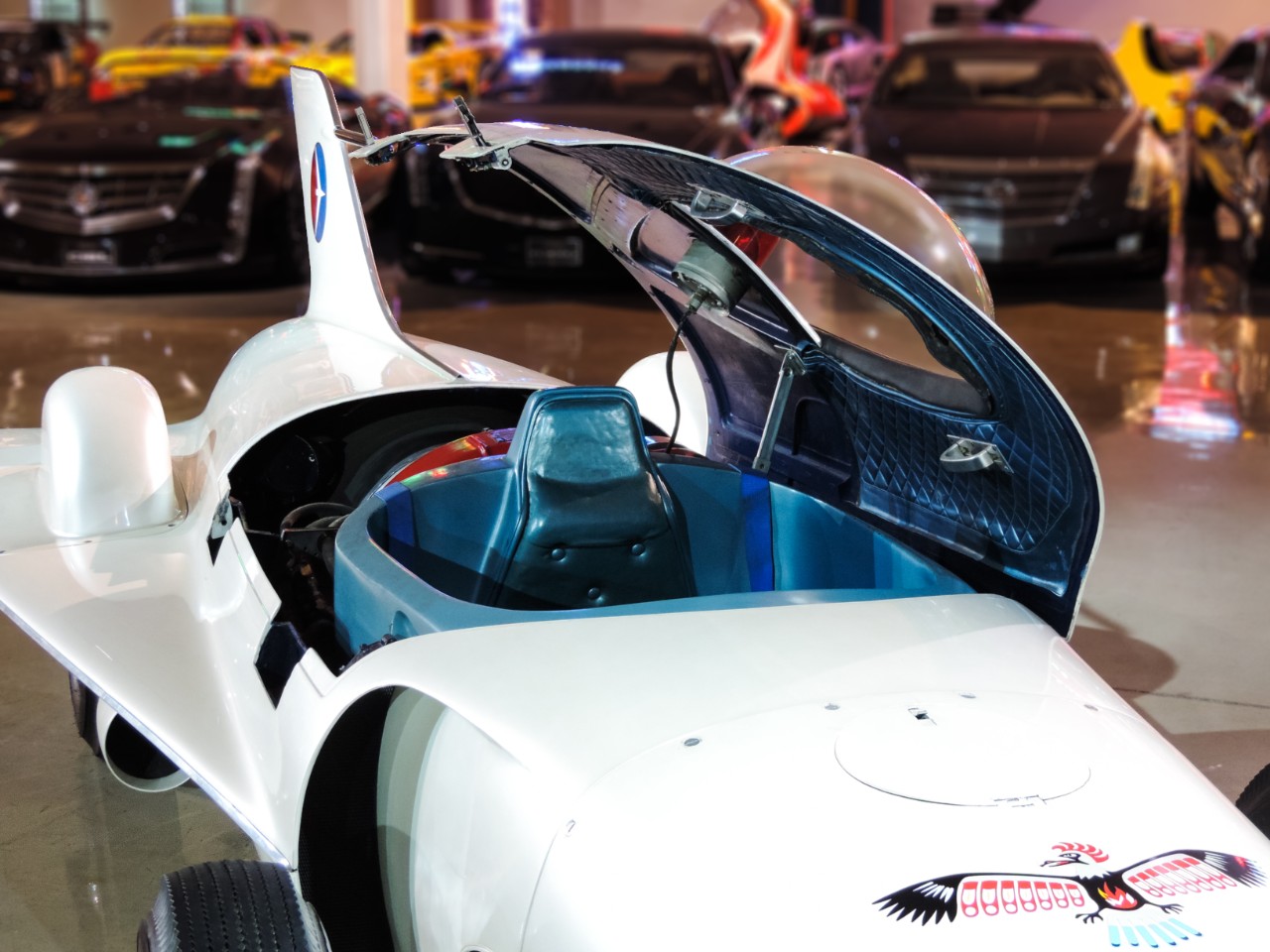

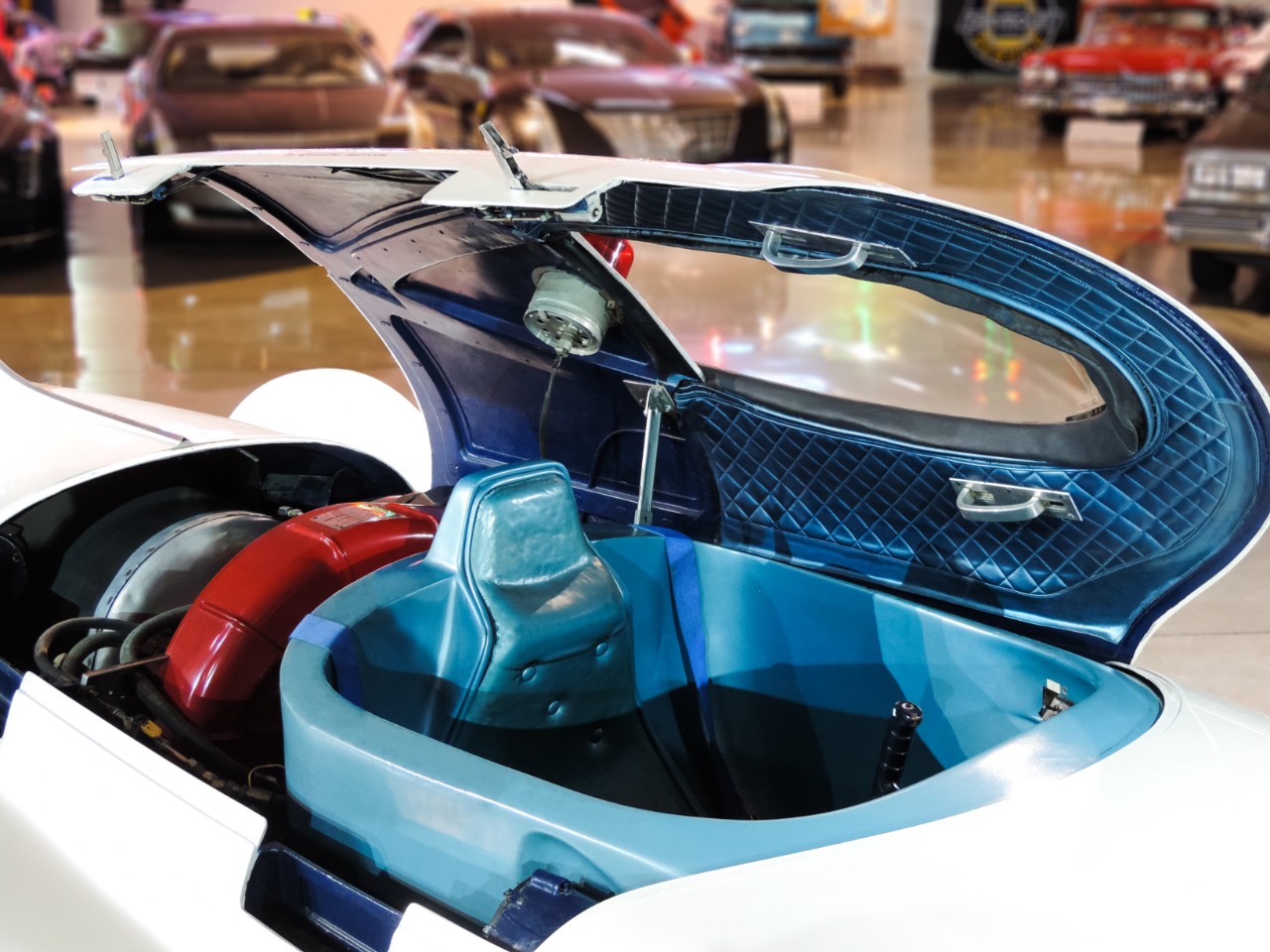

The Firebird I’s aesthetic drew direct inspiration from the aviation industry, with its sleek, futuristic design resembling a jet on wheels. The car’s body was constructed from fiberglass-reinforced plastic, a material that was lightweight and allowed for the streamlined, bullet-shaped fuselage. A bubble-topped canopy covered the single-seat cockpit, evoking the appearance of fighter jets from the era. In addition to the striking body, the XP-21 featured short wings and a large vertical tail fin, further emphasizing its aircraft lineage.

The negative angle of attack of the wings and the large 6-square-foot tail fin were optimized through extensive testing at the California Institute of Technology's wind tunnel. This was one of the first instances of aerodynamic principles being applied to automobile design, and the results were visually striking, as well as functional.

The Whirlfire Turbo-Power Engine

At the heart of the XP-21 Firebird I was its revolutionary powerplant: the Whirlfire Turbo-Power gas turbine engine. This engine was developed under the supervision of Charles L. McCuen, the general manager of GM's Research Laboratories Division, and represented a significant departure from conventional internal combustion engines. Unlike a jet airplane, which generates thrust by expelling exhaust gases through a tailcone, the Firebird I utilized a power turbine connected to the rear wheels via a transmission.

The Whirlfire Turbo-Power engine was capable of producing an impressive 370 horsepower at a power turbine speed of 13,000 rpm. The engine featured a two-speed setup and expelled exhaust at a scorching temperature of 1,250°F (677°C). With these specifications, the Firebird I could theoretically reach significant speeds, but its handling presented challenges due to the massive torque generated by the engine.

Early Testing and Performance

Initially, GM engineer Emmett Conklin was the only person authorized to drive the XP-21, and he pushed the car to speeds of up to 100 mph (160 km/h) during early tests. However, upon shifting into second gear, the torque became so overwhelming that the car's tires lost traction, prompting Conklin to slow down to avoid a crash. Despite its raw power, the Firebird I was never intended to break speed records or become a commercial product. Instead, it served as a testbed for the practical feasibility of gas turbine engines in vehicles.

Later, famed race car driver Maury Rose had the opportunity to test drive the Firebird I at the Indianapolis Speedway, further cementing the car's status as an engineering icon. Despite its aviation-like characteristics, the Firebird I was still very much a car—albeit an experimental one—and not designed to match the speeds or operational requirements of jet-powered aircraft.

Technological Innovations

The XP-21 Firebird I was more than just a powerful engine in a futuristic body—it was also a showcase for advanced technology. Its braking system was unique for the time, with drum brakes positioned on the outside of the wheels to enable faster cooling, an essential feature given the car's high-speed potential. In addition, the car's wings were equipped with aircraft-style flaps, which helped slow the car down from high speeds, mirroring systems used in aviation.

The vehicle's chassis, aerodynamics, and mechanical systems all represented a significant step forward in the application of aviation technology to automotive design. At a time when most cars were equipped with large, heavy, and inefficient engines, the Firebird I stood apart as a vision of what might be possible in the future.

Final Thoughts

While the XP-21 Firebird I never entered production or paved the way for a new era of gas turbine-powered cars, its legacy as a daring experiment in engineering and design endures. The lessons learned from this car influenced subsequent automotive research, and the Firebird I remains a celebrated symbol of mid-century innovation.

With its 2,500 lb (1,134 kg) body and 100-inch (254 cm) wheelbase, the Firebird I combined striking design, advanced materials, and cutting-edge engineering to create a concept that captured the imagination of the automotive world. It may not have been a practical road vehicle, but it offered a glimpse of the technological possibilities that lay ahead for the industry.

In the years since its creation, the XP-21 Firebird I has been admired for its vision, audacity, and the creative leap it represented. As one of GM's most iconic concept cars, it serves as a reminder of the importance of pushing the boundaries of design and engineering in pursuit of innovation.
